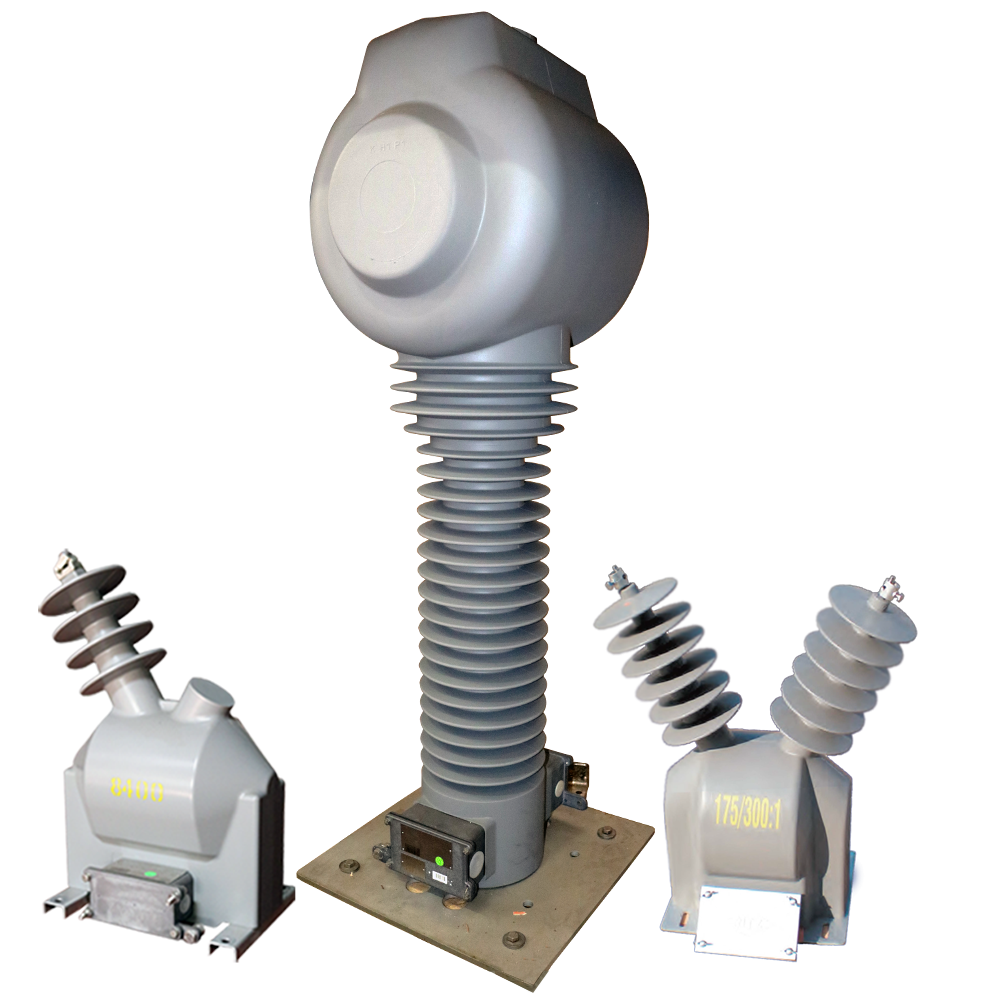

Medium Voltage Current Transformer

Up to 72.5 kV
Outdoor Current Transformers are cast resin insulated. Primary winding as well as the core(s) with secondary winding moulded in one single process with epoxy resin which has been processed under vacuum. The secondary terminals are located in a sturdy terminal box made of cast aluminum. For metering transformers, this terminal box can be sealable. Primary terminals are optionally inserts, bolts, terminal pads, or clamp-type connectors.
Dry-type (cycloaliphatic epoxy resin insulated)
Current Transformers are suitable for all types of weather conditions
ANSI / IEEE or IEC Standards based on customer's preference
Widest range of available specifications according to client's requirement
Extended Range design with 0.15% accuracy class (IEEE)
InstallationOutdoor
Voltage Rating24 kV36 kV72.5 kV
BIL125 kV200 kV350 kV
Rated Primary Current1250 A
Rated Secondary Current5 A
Rated Short-time Thermal CurrentUp to 63 kA
Accuracy/BurdenANSI/IEEE Standards
Frequency60 Hz
Available on Request
– Indoor type units (up to 36kV)
– IEC Standards
